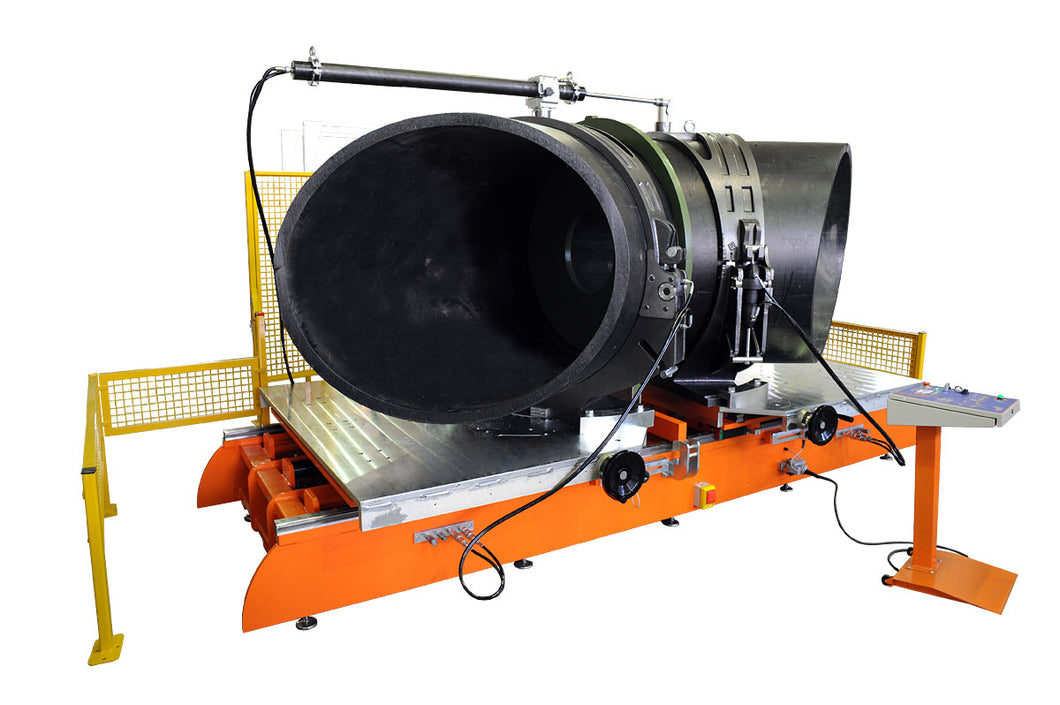

ALFA 1200 is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws.
Elbows Ø 630 ÷ 1200 mm
Tees - Crosses - Wyes Ø 630 ÷ 1000 mm
Composed of:
- A machine body with two hydraulically controlled carriages
- A control panel that features the CNC system, thanks to this would eliminate any risk of error due to the operator. Possibility to pre-set 20 customized. The CNC incorporates a data-logging that can store up to 4000 cycles. It is possible to download the report PDF via USB slot
- A Teflon-coated heating plate with electrical movement (in/out) on spherical bearings guides
- A milling cutter with electrical movement (in/out) on spherical bearings guides, operated by an electrical engine
- An upper cylinder, to be positioned on the jaws, for welding extra thick pipes and/or whenever it is necessary to apply high pressures.
STANDARD COMPOSITION
- Machine body with control panel CNC
- Elbows jaws Ø 1200 complete with inserts from Ø 630 to Ø 1000 mm
- Heating plate
- Milling cutter
- Upper cylinder and service tools
ON REQUEST (ACCESSORIES)
- Wyes - Tees - crosses jaws Ø 1000 mm inserts from Ø 630 to Ø 900 mm
Technical features:
| Materials |
HDPE/PP |
| Working range |
ELBOWS
Ø 630 ÷ 1200 mm
Y - TEES - CROSSES
Ø 630 ÷ 1000 mm
|
| Welding system |
CNC |
| Memory |
4000 reports |
| Power supply |
400 V Three Phase 50/60 Hz |
| Total absorbed power |
47000 W |
| Working Temperature |
180° ÷ 280° C |
| Weight |
6120 Kg |
| Dimension |
4100x6000x3060 mm |
