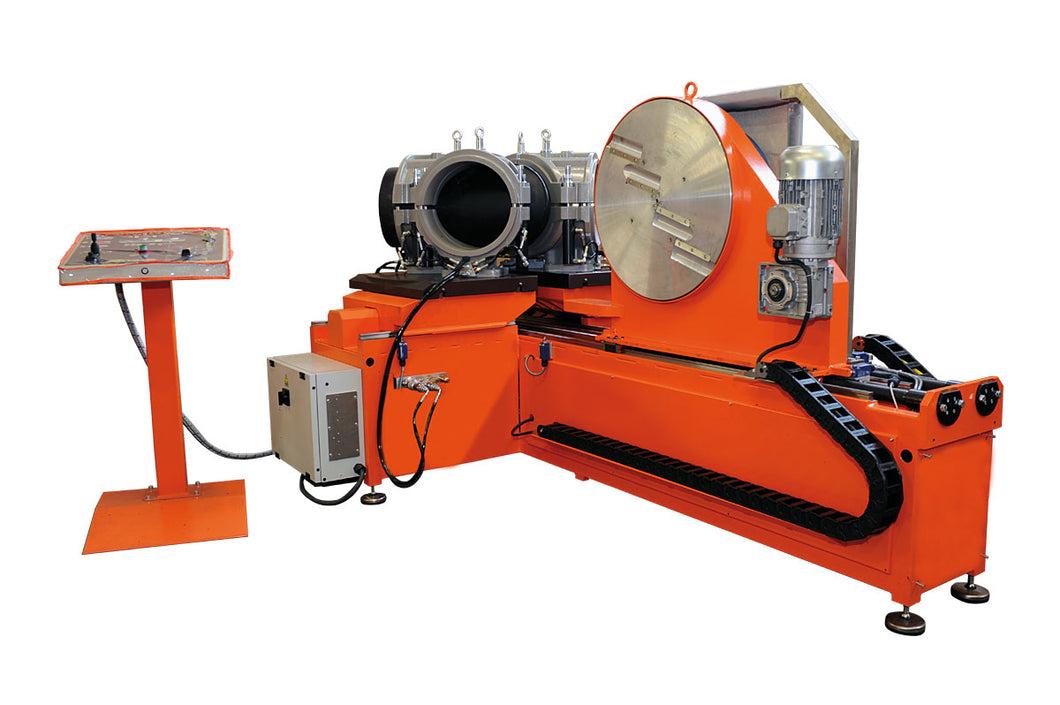

Ritmo ALFA 400 CTB fitting fabrication welder (110-400mm)

Ritmo ALFA 400 CTB fitting fabrication welder (110-400mm)

Ritmo

Regular price Sale

This product is not available for purchase online. For pricing and further information, add to your quote list using the button below.

ALFA 400 CTB is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws.

Elbows Ø 110 ÷ 400 mm (4" IPS ÷ 16" IPS)
Tees - Crosses - Wyes  Ø 110 ÷ 355 mm (4" IPS ÷ 14" IPS)


Elbows and Wyes (Y) jaws opening/closing and locking movements are controlled hydraulically
Tees/Crosses jaws opening/closing movements are manual

The ALFA 400 CTB can also weld special and moulded fittings such as elbows, tees and flange necks, thanks to a different type of special jaws.

Composed of:
- A machine body with two hydraulically controlled carriages; a control panel that features the Easy Life system, thanks to which it is possible to carry out a whole welding cycle in a simple, intuitive and repeatable way, so that the operator’s interference would be reduced to the minimum. An built-in memory allows the machine to store 400 welding cycles (including the set diameters and SDR). It is possible to transfer the welding data to a PC through a serial port (USB adaptor connector available) and data-management software. A printer can be connected to the serial port, to get a welding report at the end of each welding cycle
- A Teflon-coated heating plate with hydraulic movement (in / out) on spherical bearings guides
- A milling cutter with hydraulic movement (in/out) on spherical bearings guides, operated by an electrical engine, provided with eight steel blades
- an upper cylinder, to be positioned on the jaws, for welding extra thick pipes and/or whenever it’s necessary to use high pressures

STANDARD COMPOSITION
- Machine body with control panel EASY LIFE
- Heating plate
- Milling cutter
- Upper cylinder and service tools

 ON REQUEST (ACCESSORIES)
- Elbows jaws Ø 400 mm with lateral support inserts from Ø 110 to Ø 355 mm
- Tees/crosses jaws Ø 355 mm inserts from Ø 110 to Ø 315 mm
- Wyes jaws jaws Ø 355 mm inserts from Ø 110 to Ø 315 mm
- Right or left special jaws Ø 400 inserts from Ø 110 to Ø 355 mm
- Tool for flange necks

Technical features:

Materials HDPE/PP
Working range





ELBOWS
Ø 110 ÷ 400 mm (4" IPS ÷ 16" IPS)

Y - TEES - CROSSES
Ø 110 ÷ 355 mm (4" IPS ÷ 14" IPS)

Welding system EASY LIFE
Memory 400 reports
Power supply  400 V Three Phase 50/60 Hz
Total absorbed power   16000 W
Working Temperature   180° ÷ 280° C
Weight 1200 Kg
Dimension  2560x1725x1450 mm
