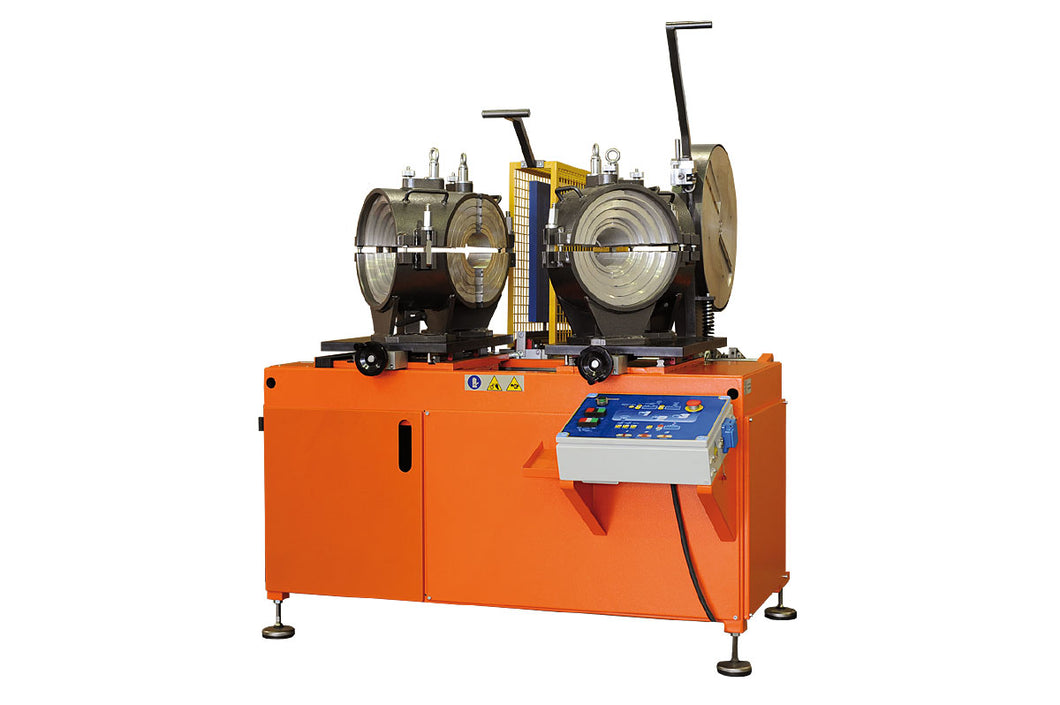

ALFA 400 EASY LIFE workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws:
elbows Ø 90 ÷ 400 mm (4" IPS ÷ 16" IPS)
tees - crosses - wyes Ø 90 ÷ 315 mm (4" IPS ÷ 12" IPS)
The ALFA 400 EASY LIFE can also weld special and moulded fittings such as elbows, tees and flange necks, thanks to a different type of special jaws.
Composed of:
- A machine body with two carriages, one of which driven by a hydraulic system; a control panel that features the Easy Life system, thanks to which it is possible to carry out a whole welding cycle in a simple, intuitive and repeatable way, so that the operator’s interference would be reduced to the minimum. An built-in memory allows the machine to store 4000 welding cycles (including the set diameters and SDR). Possibility to pre-set 50 customized. It is possible to transfer the welding data to a PC through a serial port (USB adaptor connector available) and data-management software. A printer can be connected to the serial port, to get a welding report at the end of each welding cycle.
- A heating plate featuring a new horizontal sliding system, automatically operated, which enables a fast side-sliding of the plate during the exchange period. The whole process is carried out with no need of disconnecting the upper cylinder, whenever it is in use.
- A milling cutter for levelling the ends of pipes and/or fittings that slides on recirculating ball slideways, with an electronic device for a soft start.
- An upper cylinder, to be positioned on the jaws, for welding extra thick pipes and/or whenever it’s necessary to use high pressures.
- Available in 230 V and 400 V.
STANDARD COMPOSITION
- Machine body with control panel EASY LIFE
- Heating plate
- Milling cutter
- Upper cylinder and service tools
- Elbows jaws Ø 400 mm with lateral support inserts from Ø 90 to Ø 355 mm
ON REQUEST (ACCESSORIES)
- Tees/crosses jaws Ø 315 mm inserts from Ø 90 to Ø 280 mm
- Wyes jaws jaws Ø 315 mm inserts from Ø 90 to Ø 280 mm
- Right or left special jaws Ø 400 inserts from Ø 90 to Ø 355 mm
- Tool for flange necks
Technical features:
| Materials |
HDPE/PP |
| Working range |
ELBOWS
Ø 90 ÷ 400 mm
Y - TEES - CROSSES
Ø 90 ÷ 315 mm
|
| Welding system |
EASY LIFE |
| Memory |
4000 reports |
Power supply
|
230 V Single Phase 50/60 Hz
400 V Three Phase 50/60 Hz |
| Total absorbed power |
7360 W |
| Working Temperature |
180° ÷ 280° C |
| Weight |
647 Kg |
| Dimension |
1490x2020x1700 mm |
