BAK ProtOn automatic hot air welder

BAK ProtOn automatic hot air welder


Regular price Sale

This product is not available for purchase online. For pricing and further information, add to your quote list using the button below.

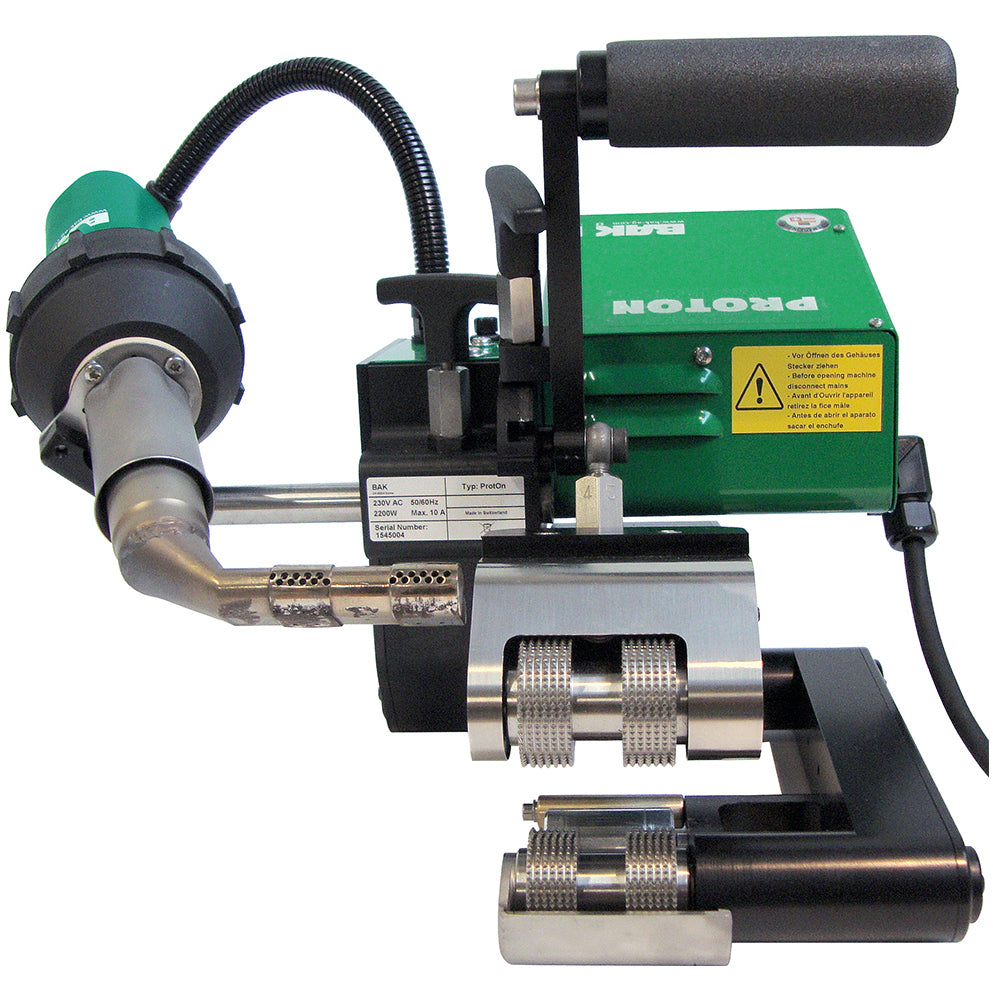

The BAK ProtOn is a Swiss-made automatic hot air welder suitable for an array of materials used in civil engineering and tunnel construction. The drive and heater motors are brushless and the welder features a combined wedge with hot air and contact.

  • small, light and very robust
  • drive and heater motor brushless
  • for thin material and overhead welding
  • simple to operate
  • stepless adjustment of all welding parameters and air flow
  • material welding range: PE-LD, PE-HD, PVC-P, PP, ECB, EVA, TPO

Technical data

Voltage V 230/120
Frequency Hz 50/60
Power consumption W 2300
Temperature °C max. 550
Speed m/min max. 5
Welding pressure N max. 1000
Size (l x w x h) mm 370 x 340 x 330
Seam dimensions
(other sizes on request)
mm 15-15-15
Weight kg 9
