Ritmo HS pipe rollers (up to 1000mm)

Ritmo HS pipe rollers (up to 1000mm)

Ritmo

Regular price Sale

This product is not available for purchase online. For pricing and further information, add to your quote list using the button below.

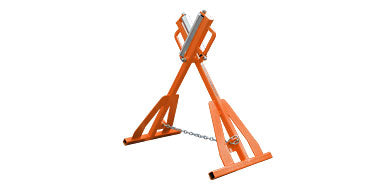

ROLLER HS, this device is essential for supporting the pipes while they are being welded with the butt fusion machines. The rollers minimise pipe friction and drag force no matter which is the construction site condition.
Special design for ALL TERRAIN and TRAILER LINE.

- HS ROLLER 250 which can sustain pipes up to Ø 250 mm 8" IPS

- HS ROLLER 355 with a working range up to Ø 355 mm 14” IPS

HS ROLLER 630 with a working range up to Ø 630 mm 24” DIPS

- HS ROLLER 1000 with a working range up to Ø 1000 mm 36” DIPS

Technical features:

HS ROLLER 250

Working range

max Ø 250 mm 8" IPS
Dimensions   1150 x 500 x 756 mm
Weight 26 Kg
Weight capacity 500 Kg

HS ROLLER 355
Working range     max Ø 355 mm 14" IPS
Dimensions 1421 x 600 x 818 mm
Weight 33 Kg
Weight capacity 1000 Kg

HS ROLLER 630
Working range  max Ø 630 mm 24" DIPS
Dimensions 1766 x 800 x 982 mm
Weight 55 Kg
Weight capacity 2000 Kg

HS ROLLER 1000
Working range  max Ø 1000 mm
36" DIPS
Weight 140 Kg
Weight capacity 3000 Kg
