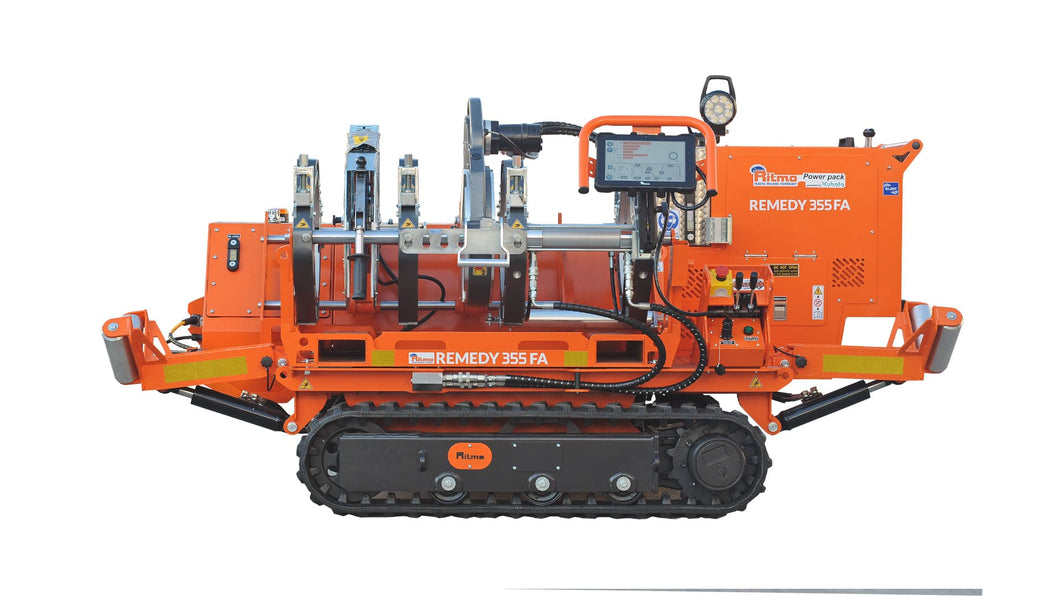

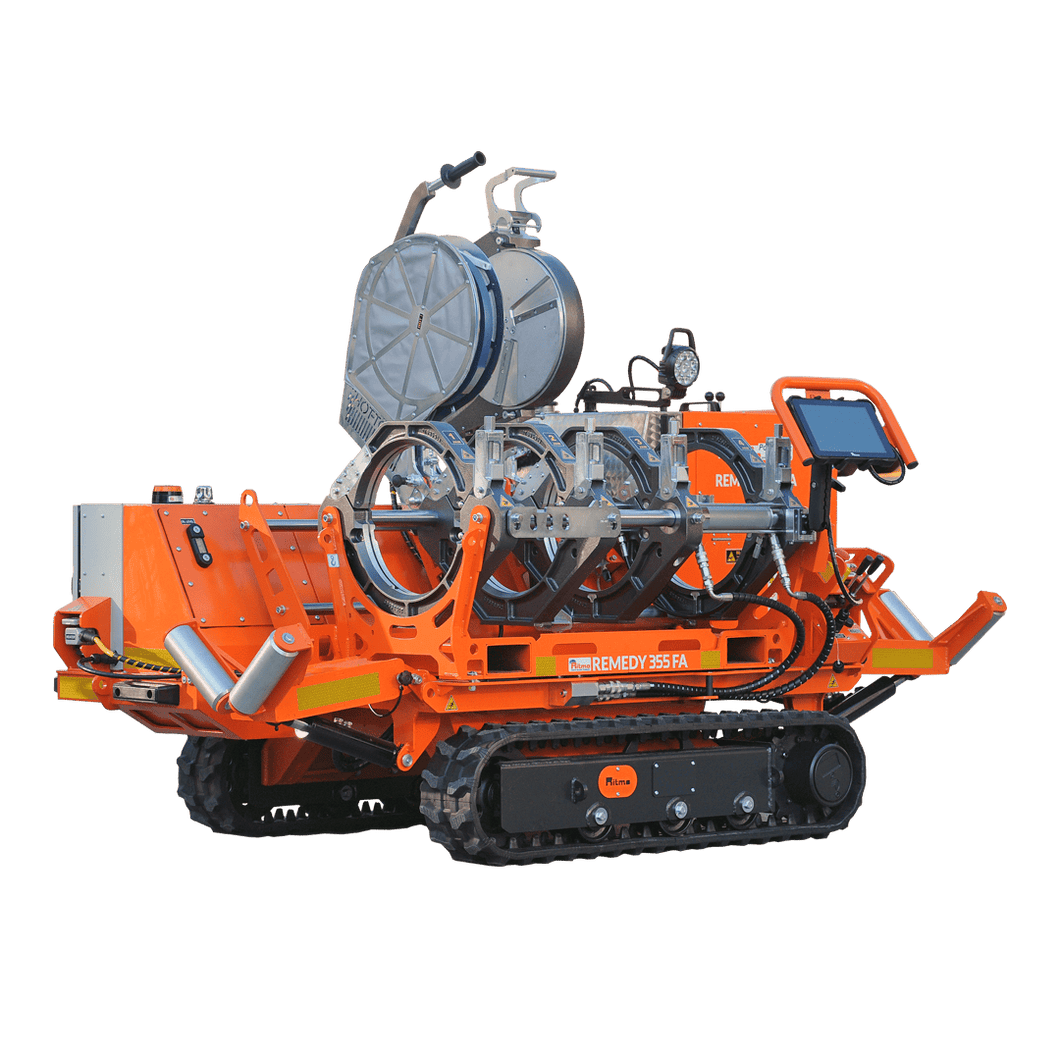

The Ritmo REMEDY 355 FA high-pressure all-terrain butt-fusion welder (125-355mm) is compact, independent and versatile. It is a high productivity welder designed to guarantee you the best performance with small diameter pipes. Handy, compact, with an on-board generator and tracked traction
Features
Maximum performance

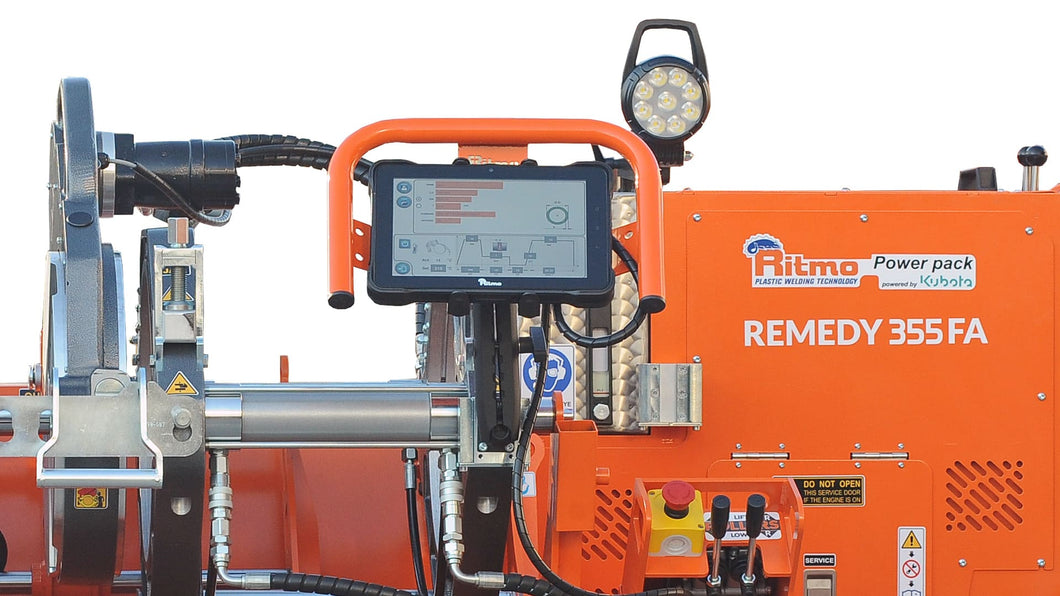

REMEDY 355 FA for a CNC FULLY AUTOMATIC welding where the system manages the opening of the machine and the extraction of the heating plate and the subsequent closing according to the International Standards ISO 21307 Low Pressure; GIS/PL2-3:2015; WIS 4-32-08 I4; DVS 2207 -1:2015; DVS 2207- 11: 2017.
SmartLock

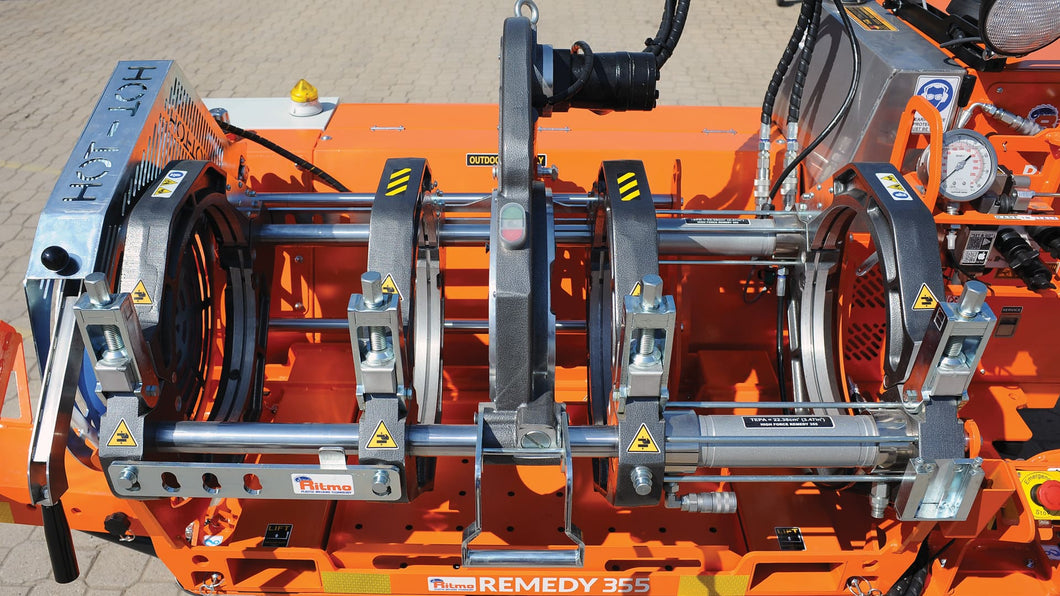

The REMEDY 355 FA clamps are equipped with the SmartLock system (Ritmo Patent) which allows, without the use of any type of tool, to speed up the preparation times for welding with quick locking and release of reductions.
Easy to Use
REMEDY 355 FA is robust and reliable. With its 14 kW engine, you are ready for any terrain. With a full tank of diesel, you have an autonomy of over 12 hours and thanks to the tracks you can overcome slopes of 35%. With Remedy 355 you can weld HDPE and PP pipes Ø 125 ÷ 355 mm, 4" ÷ 14" IPS, 4" ÷ 12" DIPS.
Complete
The standard equipment of the Remedy 355 FA is rich. The presence of hydraulic roller, the hydraulic milling cutter, the facilitated insertion system for milling cutter - heating plate (Ritmo Patent) in addition to the welding area illuminated by high-intensity LEDs make the welder complete and functional.
Safe movements

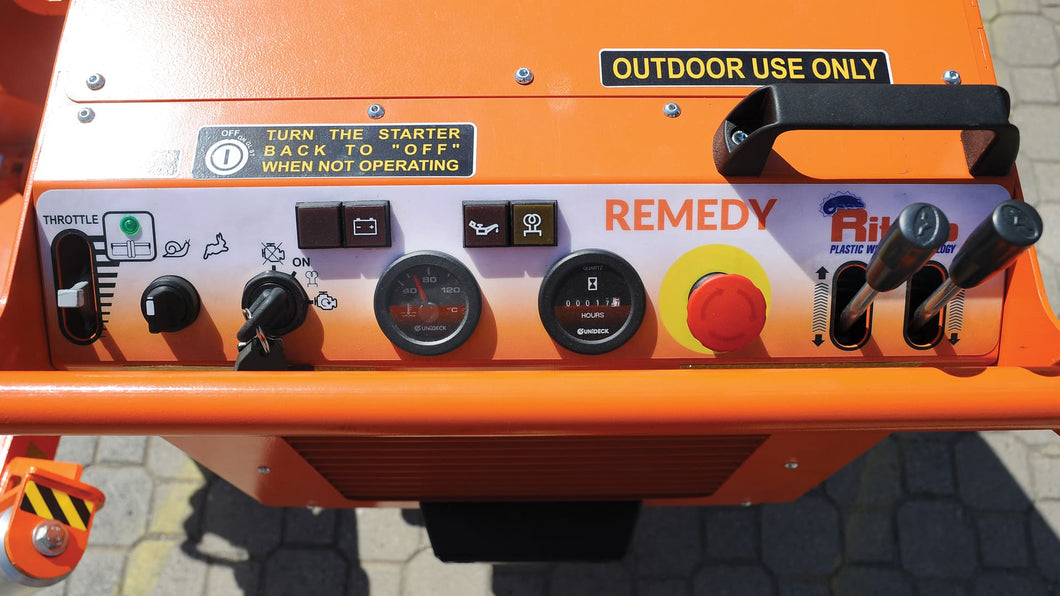

The operator manually activates the advancement of the welder through special control levers. All of this takes place from a rear control position.
In-Ditch use
A few simple steps and the welding unit can be detached from the trolley to operate in-ditch. Dedicated cables and extensions up to 7 meters (on request) allow you to continue to remotely manage the welding cycle.
Easy Maintenance
The access to the compartments for the periodic maintenance that the operator can carry out completely independently are quick and easy to perform.
Shipping Flexibility
Thanks to its compact dimensions and lightweight, the Remedy 355 FA can be easily transported with a simple trolley.
Technical specifications
| Working range |
125 ÷ 355 mm; 4” IPS ÷ 14” IPS; 4” DIPS ÷ 12” DIPS |
| On board generator |
719 cc - 14 Kw |
| Fuel |
Diesel |
| CNC welding cycle |
Yes |
| Traceability GPS |
Yes |
| Memory |
Yes |
| Memory favorite welds |
Yes |
| Working temperature |
180° ÷ 260° C (356° ÷ 500° F) |
| Outside temperature range |
-5 ÷ +40°C (23 ÷ 104°F) |
| Pressure |
up to 150 bar |
| Fuel tank |
25 L (6.6 gal) |
| Autonomy |
12,5 hours |
| Max operating slope |
35% |
| Dimensions standard composition (W x D x H) |
3007 x 1479 x 1690 mm 9.86 x 4.85 x 5.54 ft |
| Weight standard composition |
1170 Kg (2579 lb) |
