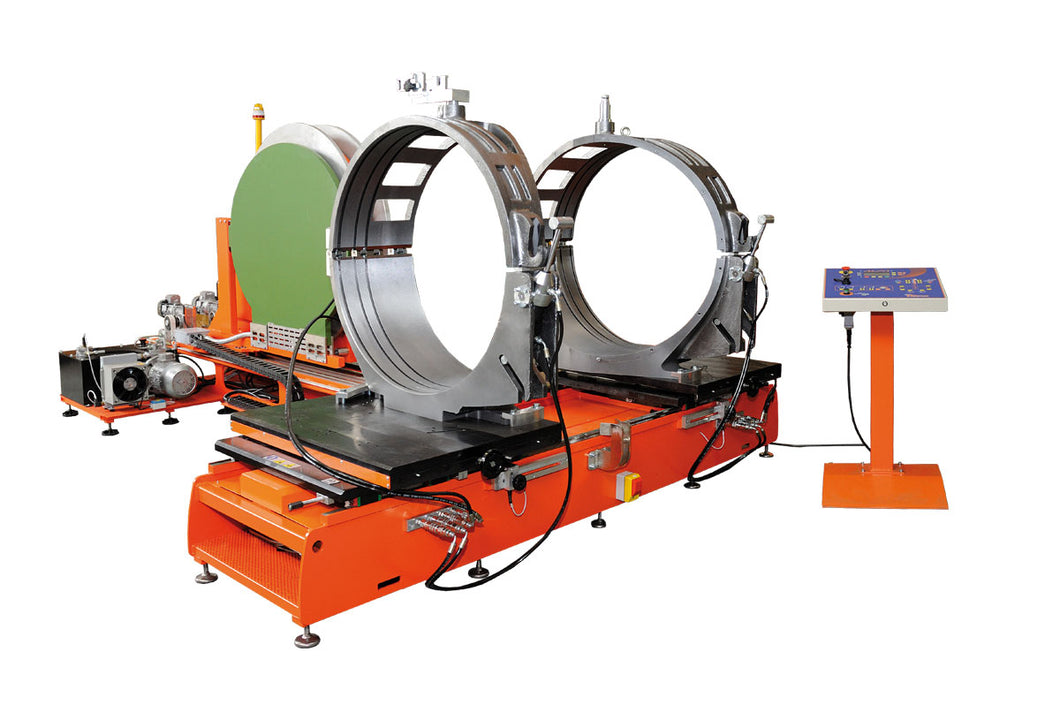

Ritmo ALFA 1000 fitting fabrication welder (355-1000mm)
Ritmo
Regular price
Sale
ALFA 1000 is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws.
Elbows Ø 355 ÷ 1000 mm
Tees - Crosses - Wyes Ø 355 ÷ 800 mm
Composed of:
- A machine body with two hydraulically controlled carriages
- A control panel that features the CNC system, thanks to this would eliminate any risk of error due to the operator. The CNC incorporates a data-logging that can store up to 4000 cycles. It is possible to download the PDF data via USB slot. Possibility to pre-set 20 customized
- A Teflon-coated heating plate with electrical movement (in/out) on spherical bearings guides
- A milling cutter with electrical movement (in/out) on spherical bearings guides, operated by an electrical engine
- An upper cylinder, to be positioned on the jaws, for welding extra thick pipes and/or whenever it is necessary to apply high pressures.
STANDARD COMPOSITION
- Machine body with control panel CNC
- Elbows jaws Ø 1000 complete with inserts from Ø 355 to Ø 900 mm
- Heating plate
- Milling cutter
- Upper cylinder and service tools
ON REQUEST (ACCESSORIES)
- Wyes - Tees - crosses jaws Ø 800 mm inserts from Ø 355 to Ø 710 mm
Technical features:
Materials | HDPE/PP |
Working range |
ELBOWS Ø 355 ÷ 1000 mm Y - TEES - CROSSES Ø 355÷ 800 mm |
Welding system | CNC |
Memory | 4000 reports |
Power supply | 400 V Three Phase 50/60 Hz |
Total absorbed power | 38000 W |
Working Temperature | 180° ÷ 280° C |
Weight | 3130 Kg |
Dimension | 2940x4560x3060 mm |
